Description

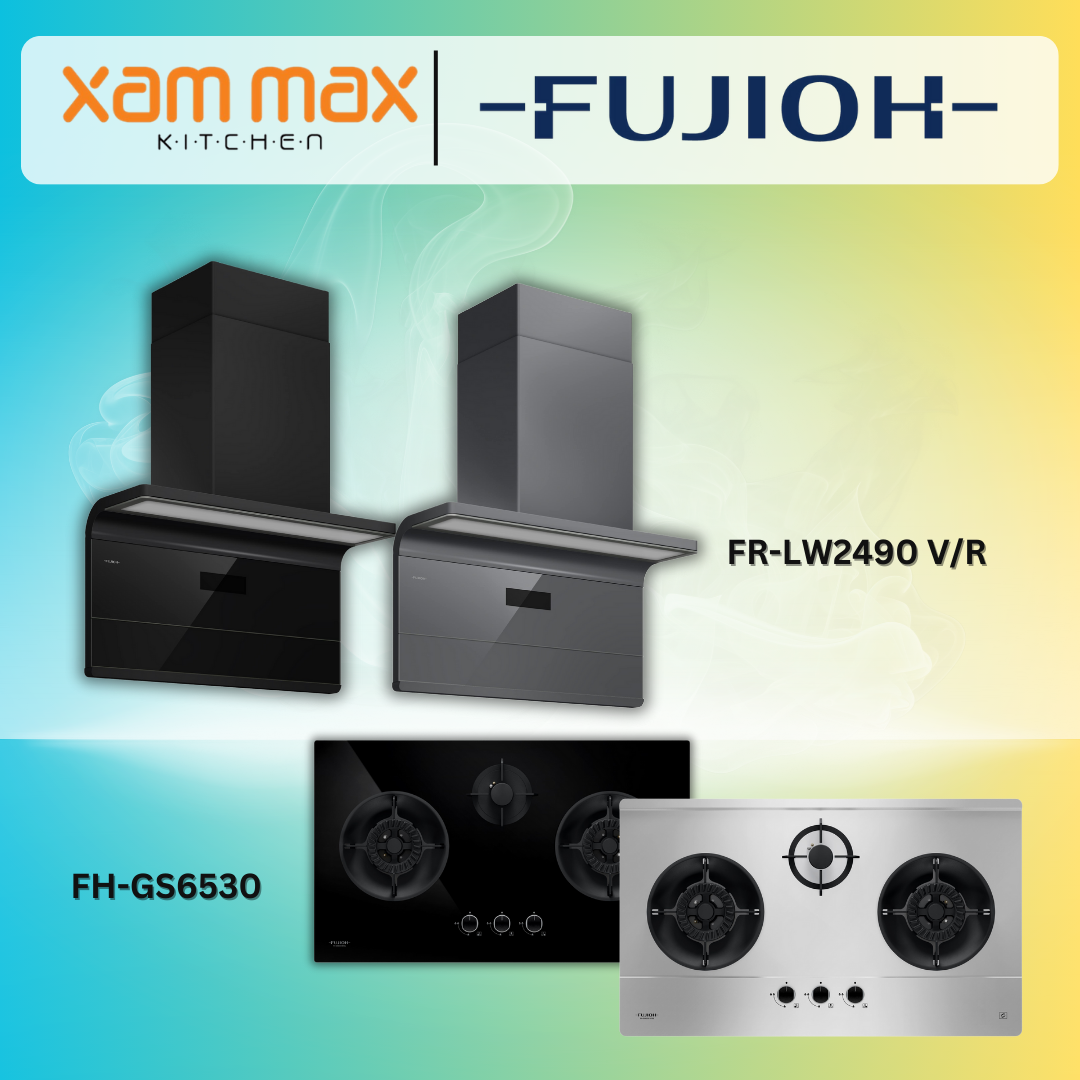

FUJIOH Chimney Hood FR-LW2490 V + Gas Hob FH-GS6530

Key Highlights

• 895mm ultra-slim L-shaped chimney hood
• Oil-repellent stainless steel sirocco fan
• Heat Clean function + gesture control
• 3-burner gas hob with sectional flame control
• Durable SUS304 stainless steel surface
• Flame failure safety device
• Strong wok-friendly heating power

Hood Specifications – FR-LW2490 V

• Type: Ventilating
• Dimensions: W895 × D350 × H1133–1363 mm
• Weight: 36 kg
• Voltage / Frequency: 220–240V / 50Hz
• Power Consumption:
  • High: 93 / 95 / 96 W
  • Boost: 159 / 160 / 161 W
• Sound Level:
  • High: 48 dB
  • Boost: 52 dB
• Oil Capturing Ratio: 86%
• Duct Diameter: 180 mm
• Control: Touch Switch + Gesture Control
• Speed: 3 Speeds + Boost
• Fan: Stainless Steel Sirocco Fan (Oil Repellent Coating)
• Motor: BLDC Motor
• Lighting: LED 8W ×1
• Timer: 3 Minutes

Hob Specifications – FH-GS6530 SVSS

• No. of Burners: 3
• Surface Type: Stainless Steel (SUS304)
• Dimensions: W880 × D520 × H150 mm
• Ignition Type: Battery Operated (Size D 1.5V)

Heating Load (L.P. Gas):

• Left: 5.0 kW
• Centre: 1.1 kW
• Right: 5.0 kW
• All Burners On: 11.1 kW

Cut-out & Installation:

• Cut-out Size: W690–830 × D390–470 mm
• Front / Rear Allowance: FA71 × RA85 mm
• Replacement Size: W690–830 × D390–470 mm
• Height: 85 mm

Hob Specifications – FH-GS6530 SVGL

• No. of Burners: 3
• Surface Type: Black Glass (Toughened Glass)
• Dimensions: W880 × D520 × H155 mm
• Ignition Type: Battery Operated (Size D 1.5V)

Heating Load (L.P. Gas):

• Left: 5.0 kW
• Centre: 1.1 kW
• Right: 5.0 kW
• All Burners On: 11.1 kW

Cut-out & Installation:

• Cut-out Size: W690–830 × D390–470 mm
• Front / Rear Allowance: FA112 × RA98 mm
• Replacement Size: W690–830 × D390–470 mm
• Height: 85 mm

Warranty

• Hood: 4-Year General Warranty
• Hob: 2-Year General Warranty
