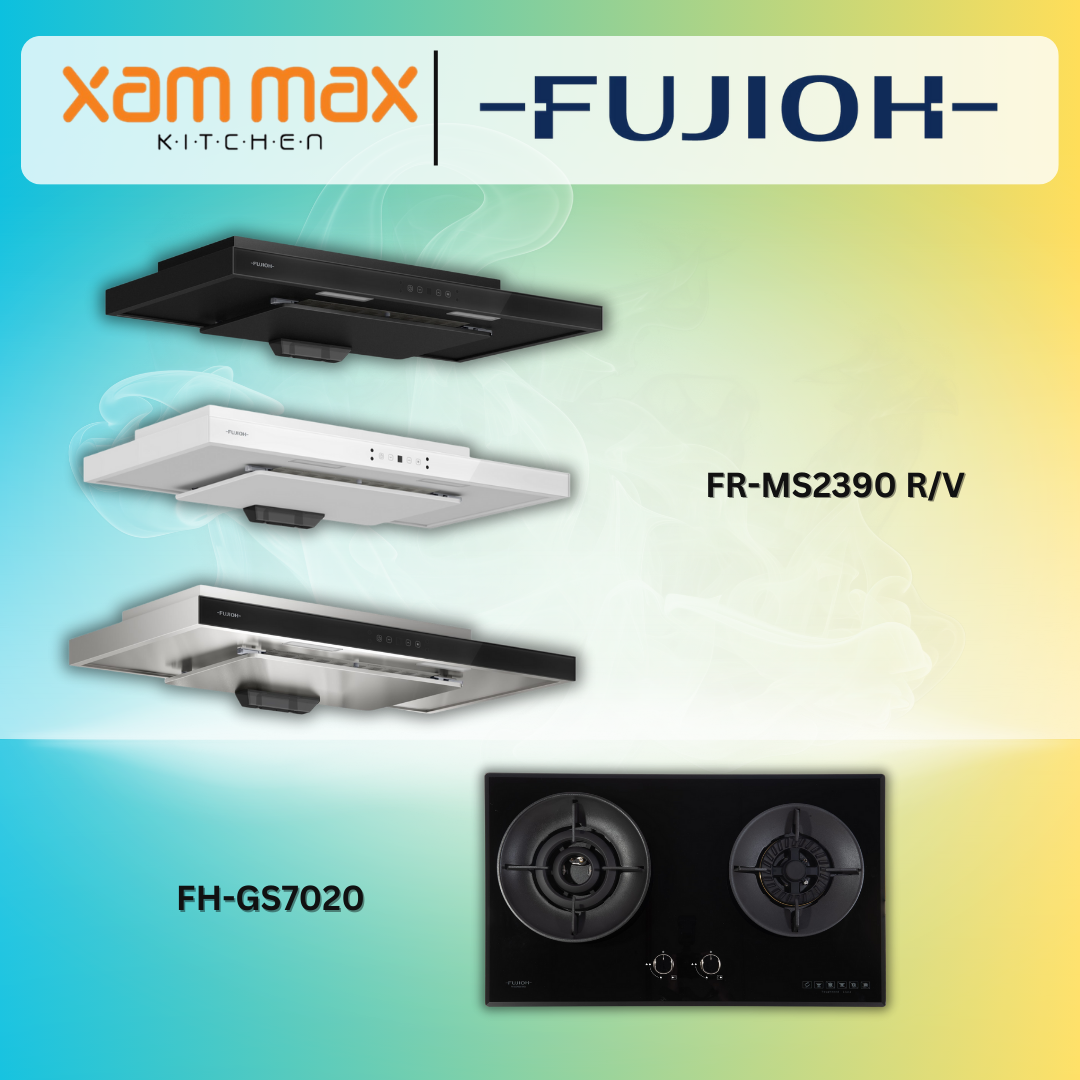

Fujioh Slim Hood FR-MS2390 V/R + Fujioh Gas Hob FH-GS7020 SVGL

Original price was: RM4,996.00.Current price is: RM3,749.00.

Description

Models FR-MS2390R FR-MS2390V
Type Recycling Ventilation
Material W900 x D460 x H120 W900 x D460 x H120
Dimensions [mm] W900 x D460 x H120 W900 x D460 x H120
Weight [kg] 10.6 10.3
Power Consumption [W]
(220/230/240V)		 141/148/163 218/233/255
Voltage [V/Hz] 220-240/50 220-240/50
Duct Diameter [mm] – 150
Sound Level [dB]
(220/230/240V)		 53/55/56 57/58/59
Oil Capturing Ratio [%] 89 86
Switch Touch Switch Touch Switch
Speed 3 Speeds 3 Speeds
Hood Body SPCC with Coated Paint / Stainless Steel (SUS304) SSPCC with Coated Paint / Stainless Steel (SUS304)
Fan Plastic fan Plastic fan
Rectifier Panel SPCC with Coated Paint / Stainless Steel (SUS304) SPCC with Coated Paint / Stainless Steel (SUS304)
Filter Aqua Slit Filter
Hydrophilic Coating		 Aqua Slit Filter
Hydrophilic Coating
Oil Tray Yes Yes
Motor AC Motor AC Motor
Lighting LED 1.5W x 2 LED 1.5W x 2
Timer 3 mins 3 mins



Gas Hob with 1 Double Inner Flame Burner

FH-GS7020 SVGL

No. of Burners 2
Surface Type Black Glass (Toughened Glass)
Dimensions W780 x D460 x H171
Ignition Type Battery Operated (Size D 1.5V)
HEATING LOAD L.P. GAS [kW]
Left 4.5
Centre –
Right 5.0
All Burners On 9.5
CUT-OUT DIMENSIONS & REPLACEMENT SIZE [mm]
Cut-out Dimensions W650-720 x D350-410
Front Allowance & Rear Allowance FA38 x RA45
Replacement Size W(650-720) x D(350-410)
Height 85





Additional information

MODEL

MS2390V/R BLACK, MS2390V/R WHITE, MS2390V/R S/S
